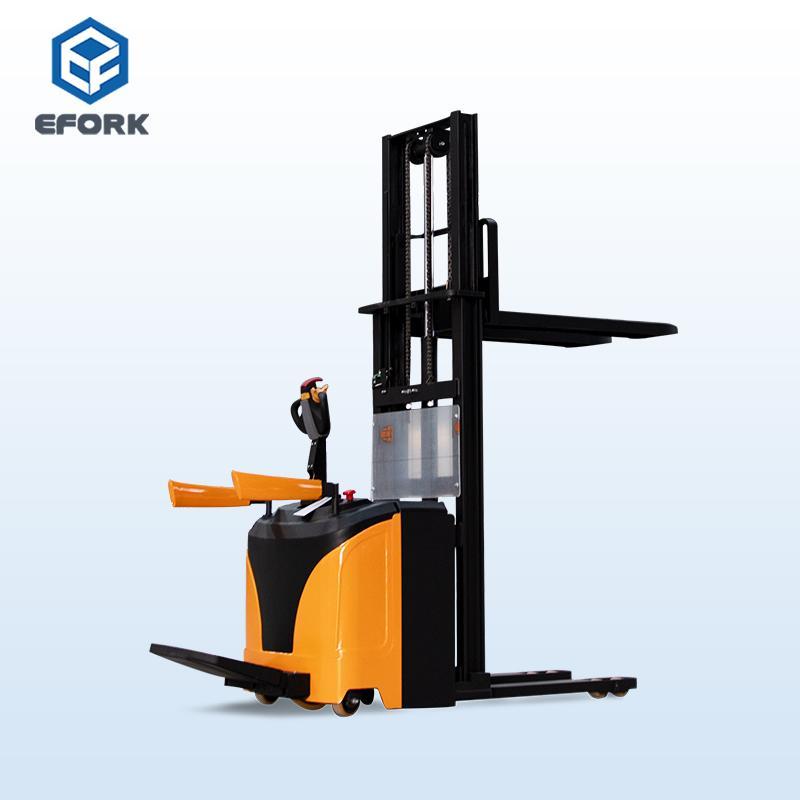

Product Name:Â 1500KG 2000KG Full Electric Pallet Stacker
All electric stacker shall be used for workshop and warehouse operation.
Small size, easy posture and flexible operation, it is the preferred product for factory.
Product Description
➤ Loading capacity: 1000-2500kg ; lifting height: 1600-5500mm
➤ CURTIS electronic control, multiple automatic protection system controllers
➤ Without frequently adjustment, damping suspension spring can take the initiative to adjust vertical drive unit according to road conditions, reduce the impact of the drive unit, balance the force of the balance wheel, raise the efficiency and smoothly of the running.
➤ High quality with buffer hydraulic pump station has the character of low noise, low vibration, sealing good, smooth and reliable hoisting and falling.
➤ AC driving, no carbon brush, free maintenance, highly efficient motor, accuracy control, powerfully output
➤ Emergency power switch. Just press the emergency stop button to cut off all the power in case of an emergency, the vehicle can stop immediately.
➤ Multi-function handle and integrated control (acceleration, horn, emergency direction, lift button)
Parameters
| Electric Pallet Stacker （Standing Type) CDD | ||||||
| Characteristics | 1.1 | Model No. | CDD10-30 | CDD15-30 | CDD20-30 | |
| 1.2 | Power Type | Full Electric | Full Electric | Full Electric | ||
| 1.3 | Operation Type | Rider Type | Rider Type | Rider Type | ||
| 1.4 | Capacity | Q(Kg) | 1000 | 1500 | 2000 | |
| 1.5 | Load Center | C(mm) | 500 | 500 | 500 | |
| 1.6 | Bearing Distance | X(mm) | 676 | 676 | 676 | |
| 1.7 | Wheelbase | Y(mm) | 1440 | 1440 | 1440 | |
| Total Weight | 2.1 | Total Weight（with Battery) | kg | 1075 | 1115 | 1150 |
| Wheels,Chassis | 3.1 | Wheel Type | PU | PU | PU | |
| 3.2 | Front Wheel | Φ×w(mm) | Φ80×70 | Φ80×70 | Φ80×70 | |
| 3.3 | Driving Wheel | Φ×w(mm) | Φ230×75 | Φ230×75 | Φ230×75 | |
| 3.4 | Balance Wheel | Ф×w(mm) | Ф125×50 | Ф125×50 | Ф125×50 | |
| 3.5 | Front Wheel Base | b2(mm) | 490 | 490 | 490 | |
| 3.6 | Rear Wheel Base | b3(mm) | 658 | 658 | 658 | |
| Dimension | 4.1 | Mast Lowered Height | H1(mm) | 2060 | 2060 | 2060 |
| 4.2 | Lift Height | H(mm) | 3000 | 3000 | 3000 | |
| 4.3 | Max. Height When Lifting | H2(mm) | 3541 | 3541 | 3541 | |
| 4.4 | Handle Height | h5(mm) | 1440 | 1440 | 1440 | |
| 4.5 | Fork Clearence when Mast Lowered | H3(mm) | 86 | 86 | 86 | |
| 4.6 | Overall Vehicle Length (pallet folded/unfolded) | L(mm) | 2185/2605 | 2185/2605 | 2185/2605 | |
| 4.7 | Overall Vehicle Width | b1(mm) | 850 | 850 | 850 | |
| 4.8 | Fork Size | s/e/l(mm) | 65/190/1150 | 65/190/1150 | 65/190/1150 | |
| 4.9 | Fork Spread | b5(mm) | 680 | 680 | 680 | |
| 4.10 | Min. Ground Clearence | m2(mm) | 30 | 30 | 30 | |
| 4.11 | Stacking aisle width,pallet folded 1m x 1.2m(1m cross forks) | Ast(mm) | 2615 | 2615 | 2615 | |
| 4.12 | Stacking aisle width,pallet unfolded 1m x 1.2m(1m coss forks) | Ast(mm) | 3028 | 3028 | 3028 | |
| 4.13 | Min. Turning Radius(pallet folded/unfolded) | Wa(mm) | 1740/2152 | 1740/2152 | 1740/2152 | |
| Performance | 5.1 | Max. Travel Speed(Unladen/Full-load) | km/h | 5.5/5 | 5.5/5 | 5.5/5 |
| 5.2 | Lifting Speed(Unladen/Full-load) | m/s | 0.1/0.1 | 0.1/0.09 | 0.1/0.086 | |
| 5.3 | Decnet Speed(Unladen/Full-load) | m/s | 0.082/0.112 | 0.082/0.115 | 0.082/0.123 | |
| 5.4 | Max. Climbing Ability (Unladen/Full-load) | ï¼… | 8/6 | 8/6 | 8/4 | |
| 5.5 | Brake Type | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Motor,Charger | 6.1 | Driving Motor | kw | 1.5 | 1.5 | 1.5 |
| 6.2 | Lifting Motor | kw | 2.2 (＞3m with 3kw) | 2.2 (＞3m with 3kw) | 2.2 (＞3m with 3kw) | |
| 6.3 | Battery Type | Lead Acid | Lead Acid | Lead Acid | ||
| 6.4 | Battery Vol./Capacity | V/Ah | 24V/210Ah | 24V/210Ah | 24V/210Ah | |
| 6.5 | Charger | V/A | 24V/30A | 24V/30A | 24V/30A | |
| Other | 7.1 | Control Model | AC | AC | AC | |
| The data is for reference only, and the details shall be subject to the actual vehicle. | ||||||
