Product Name:Â 2000kg Stand On Rider Type Electric Pallet Truck
Compared with a walkie electric pallet jack, a CBD standing type electric pallet truck has a faster driving speed, thus reducing the time of long-distance handling operations and reducing costs.
Loading capacity：2000KG-4000KG
Brand： EFORK
Model：CBD20/25/30/40
Product Video:
Product Description
➤ CURTIS electronic control
➤ Without frequent adjustment, the damping suspension spring can take the initiative to adjust the vertical drive unit according to road conditions, reduce the impact of the drive unit, balance the force of the balance wheel, and raise the efficiency and smoothness of the running.
➤ High quality with buffer hydraulic pump station has the character of low noise, low vibration, good sealing, smooth and reliable hoisting and falling.
➤ Anti-skid brake function prevents the car from sliding when driving out of control or a slope.
➤ AC driving system, drive steepless speed regulation, emergency reverse device /emergency brake switch.
➤ Multi-function handle and integrated control (Like acceleration, horn, emergency direction, lift button).
Parameters
| Electric Pallet Truck (Stand Type) CBD | ||||||
| Characteristic | 1.1 | Model | CBD20â…¢ | CBD25â…¢ | CBD30â…¢ | |
| 1.2 | Power | Electric | Electric | Electric | ||
| 1.3 | Operation mode | Rider type | Rider type | Rider type | ||
| 1.4 | Steering mode | EPS | EPS | EPS | ||
| 1.5 | Rated load capacity | Q(t) | 2000 | 2500 | 3000 | |
| 1.6 | Load center | C(mm) | 600 | 600 | 600 | |
| 1.7 | Wheelbase | Y(mm) | 1380 | 1380 | 1380 | |
| Weight | 2.1 | Self-weight with battery | kg | 710 | 730 | 750 |
| Wheels, chassis | 3.1 | Wheel type | PU | PU | PU | |
| 3.2 | Front Wheel | ∅×w(mm) | Φ80*80 | Φ80*80 | Φ80*80 | |
| 3.3 | Rear wheel | ∅×w(mm) | Φ230*75 | Φ230*75 | Φ230*75 | |
| 3.4 | Balance wheel | ∅×w(mm) | Φ125*50 | Φ125*50 | Φ125*50 | |
| Dimension | 4.1 | Max. Lifting height | H（mm） | 205 | 205 | 205 |
| 4.2 | The height of the fork surface after the fork is lowered | H1(mm) | 85 | 85 | 85 | |
| 4.3 | Fork outer width | S1（mm） | 685/540 | 685/540 | 685/540 | |
| 4.4 | Vehicle body length (pedal folded/unfolded) | L（mm） | 1825/2240 | 1825/2240 | 1825/2240 | |
| 4.5 | Vehicle body width | S(mm) | 760 | 760 | 760 | |
| 4.6 | Fork size | s/e/l(mm) | 55/175/1150 | 55/175/1150 | 55/175/1150 | |
| 4.7 | Stacking aisle width, pallet 1m×1.2m (1m cross forks), pedal folded/unfolded | Ast(mm) | 2220/2620 | 2220/2620 | 2220/2620 | |
| 4.8 | Load-bearing distance | X(mm) | 970 | 970 | 970 | |
| 4.9 | Min. turning radius | Wa(mm) | 1670/2070 | 1670/2070 | 1670/2070 | |
| Performance | 5.1 | Driving speed, no load / full load | km/h | 6/5.5 | 6/5.5 | 6/5 |
| 5.2 | Lifting speed, no load / full load | m/s | 0.034/0.022 | 0.043/0.040 | 0.043/0.040 | |
| 5.3 | Descent speed, no load / full load | m/s | 0.022/0.029 | 0.022/0.029 | 0.022/0.029 | |
| 5.4 | Max. gradeability, no load/full load | ï¼… | 10/8 | 10/8 | 10/6 | |
| 5.5 | Service brake | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Motor | 6.1 | Driving motor power | kw | 1.5 | 1.5 | 1.5 |
| 6.2 | Lifting motor power | kw | 0.8 | 0.8 | 0.8 | |
| 6.3 | Battery | Lead-acid | Lead-acid | Lead-acid | ||
| 6.4 | Battery voltage/capacitance | V/Ah | 24V/210Ah | 24V/210Ah | 24V/210Ah | |
| 6.5 | Charger | 24V/30A | 24V/30A | 24V/40A | ||
| Others | 7.1 | Driving control mode | AC | AC | AC | |
| 7.2 | The noise level in the driver’s ear is based on EN 12053 | dB(A) | 75 | 75 | 75 | |
| The data is for reference only, and the details shall be subject to the actual vehicle. | ||||||

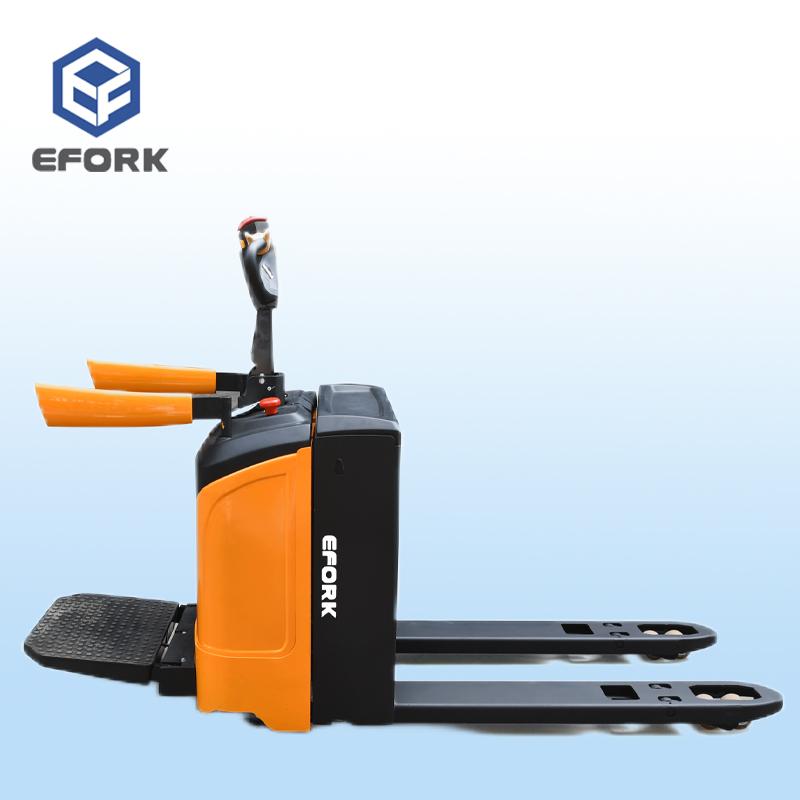

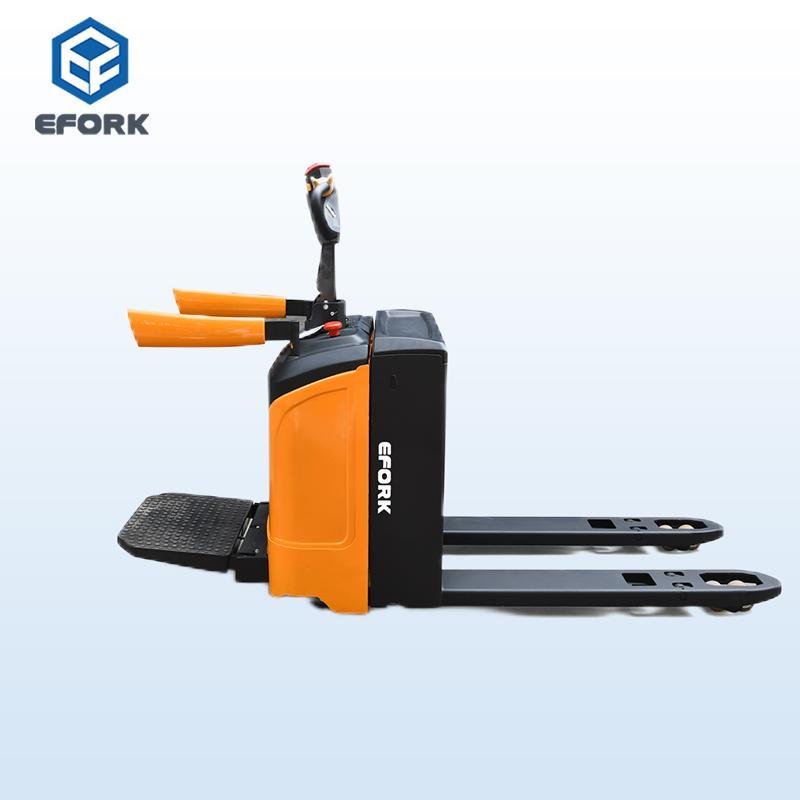

Pictures
