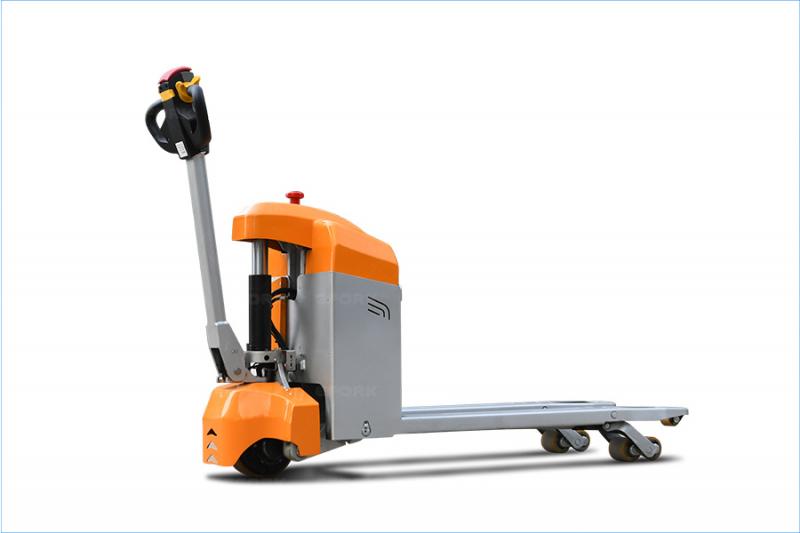

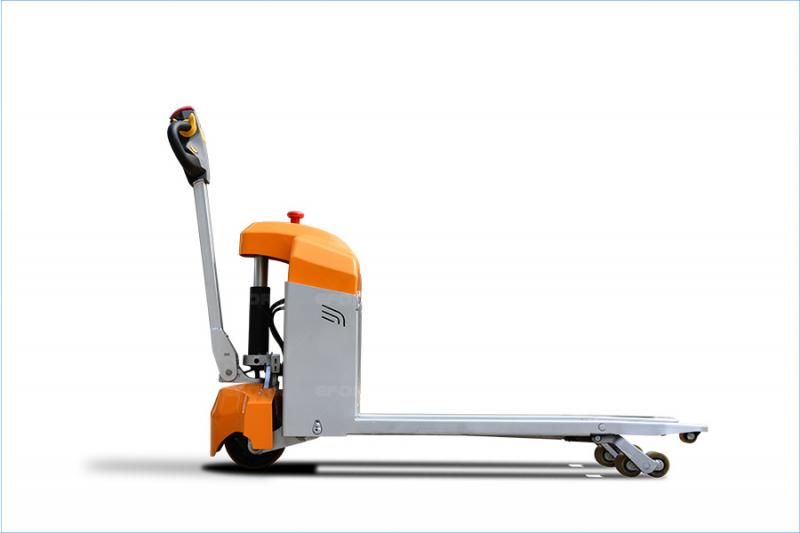

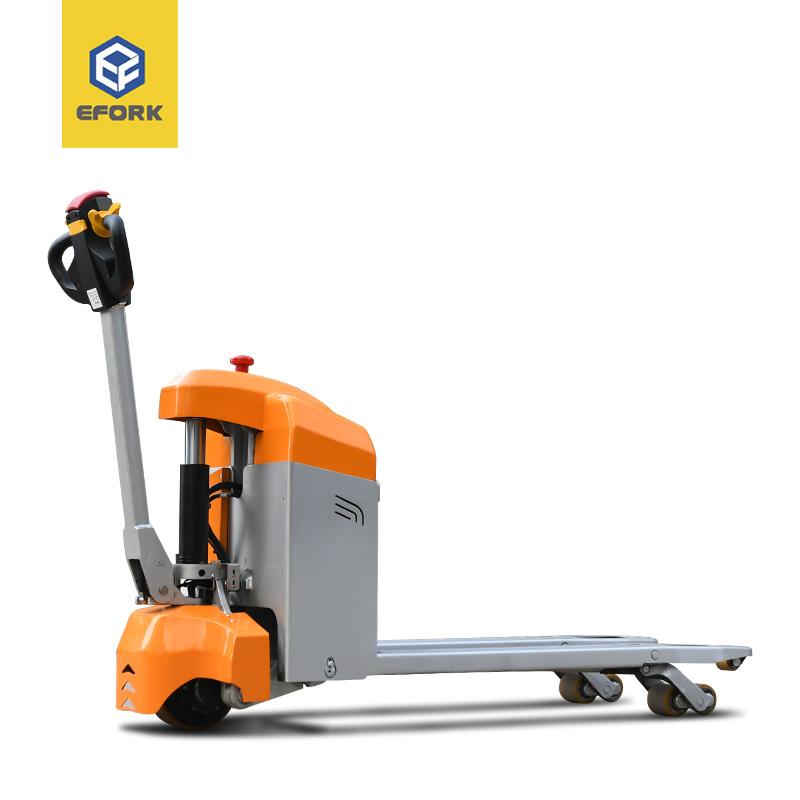

Product Name: Walking Type Electric Pallet Truck
The walking type electric pallet truck CBD15W is convenient, stable and fast in operation; small in appearance and flexible in operation; low noise and low pollution, can be operated in shopping malls, supermarkets, warehouses, freight yards, workshops and other places, especially suitable for work inside the carriage and narrow warehouse.
Product Advantage :
●Branded electronic control, multiple automatic protection system controller.
●Small turning radius, low center of gravity, excellent steering stability.
●There are up and down buttons on the left and right sides of the operation handle, which are very convenient to operate.
●The operating handle is equipped with high quality pneumatic spring, which can automatically and slowly reset when releasing the handle,durable.
●Built in high-energy sealed battery, long-term maintenance free use, no need to add water and liquid in the service life.
●The front wheel is polyurethane wheel,which is quite and suitable for the land with oil paint, epoxy resin paint and so on.
Parameters
| Walking Type Electric Pallet Truck | |||
| Characteristics | Model | CBD15W | |
| Name | Electric Pallet Truck | ||
| Power | Electric | ||
| Operation type | Walking Type | ||
| Steering mode | Mechanical steering | ||
| Rated loading capacity | Q(t) | 1500 | |
| Load center | C(mm) | 600 | |
| Wheelbase | Y(mm) | 1309 | |
| Weight | Self weight with battery | kg | 192 |
| Wheels | Wheel type | Polyurethane wheel | |
| Front wheel | ∅×w(mm) | φ80*80 | |
| Rear wheel | ∅×w(mm) | φ210*70 | |
| Dimensions | Max lifting height | H（mm） | 200 |
| Height to the fork when lowered | H1(mm) | 85 | |
| Fork outer width | S1（mm） | 680/540 | |
| Length of the vehicle（Pedal closed） | L（mm） | 1675 | |
| Width of the vehicle | S(mm) | 702/562 | |
| Fork size | s/e/l(mm) | 50/160/1200 | |
| Aisle width pallet 1000×1200（Perpendicular to 1200 side) |
Ast(mm) | 2255 | |
| Min turning radius | Wa(mm) | 1480 | |
| Performance | Driving speed, no load / full load | km/h | 5/4 |
| Lifting speed, no load / full load | m/s | 0.045/0.040 | |
| Descending speed, no load / full load | m/s | 0.035/0.043 | |
| Max grade ability, no load / full load | ％ | 8/5 | |
| Service brake | Electromagnetic | ||
| Motor | Drive motor power | kw | 0.75 |
| Lift motor power | kw | 0.8 | |
| Battery type | Lead acid battery | ||
| Battery voltage / capacitance | V/Ah | 2X12V80Ah | |
| Others | Drive control mode | AC | |
| Driver’s ear noise level according to EN12053 | dB(A) | 75 | |
