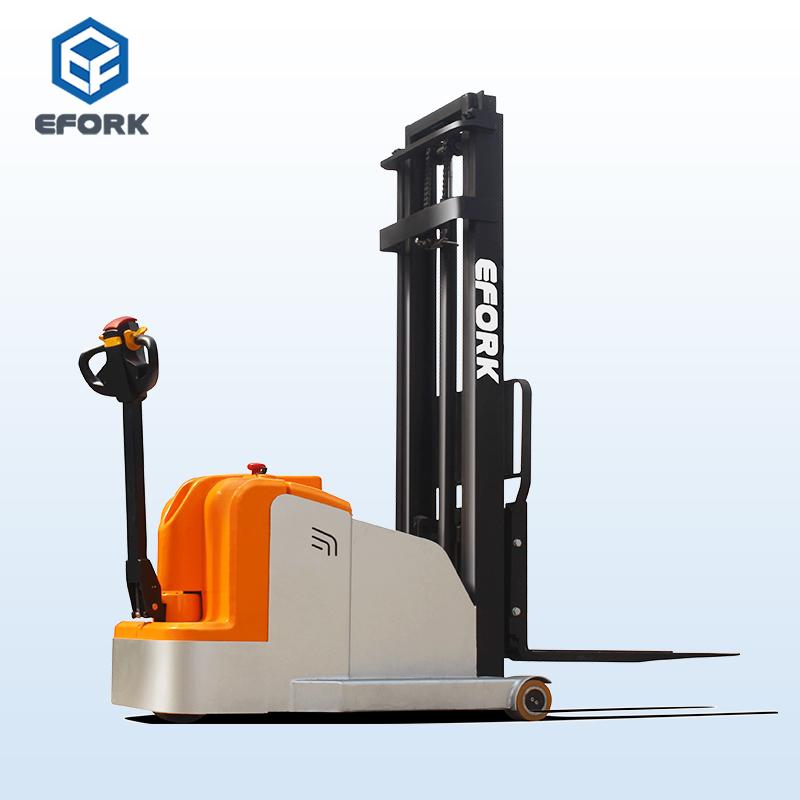

Product Name: 900-1000KG Walking Type Counterbalance Electric Pallet Stacker
EFORK CPDW series electric pallet stacker is compact & lightweight warehouse handling equipment, which is suitable for narrow sites.
American CURTIS Curtis control system, with multiple automatic protection systems, provides a higher level of functional safety.
Capacity:900/1000 Kg
Lifting height:2500-3000 mm
Apply to: single and double-deck pallet
Product Video:
Product Advantage:
●American CURTIS control system;
●Maintenance-free battery (optional lithium battery);
●Excellent layout structure, easy maintenance.
Specifications:
| Characteristics | 1.1 | Model | CPDW10-30 | CPDW12-30 | |
| 1.4 | Power (electricity, diesel, petrol, LPG, manual) | Electric | Electric | ||
| 1.5 | Operation (manual, walkie, side-standing, order picker) | Walkie | Walkie | ||
| 1.6 | Rated load capacity | Q(Kg) | 1000 | 1200 | |
| 1.7 | Load center distance | C(mm) | 500 | 500 | |
| 1.8 | The front overhang distance | X(mm) | 75 | 110 | |
| 1.9 | Wheelbase | Y(mm) | 1340 | 1340 | |
| Weight | 2.1 | Self-weight with battery | kg | 1320 | 1480 |
| Wheel, chassis | 3.1 | Wheel type (the front/the rear) | PU/PU | PU/PU | |
| 3.2 | The front wheel specification | ∅×w(mm) | Φ140×100 | Φ210×85 | |
| 3.3 | The rear wheel specification | ∅×w(mm) | Φ210×70 | Φ250×80 | |
| 3.4 | The front track width | b2(mm) | 816 | 801 | |
| Dimensions | 4.1 | Mast closed height | H1(mm) | 2065 | 2115 |
| 4.2 | Free lifting height | h2(mm) | 0 | 0 | |
| 4.3 | Lifting height | H(mm) | 3000 | 3000 | |
| 4.4 | Maximum mast lifting height (load backrest included) | H2(mm) | 3913 | 3913 | |
| 4.6 | Fork’s height when the mast is retracted | H3(mm) | 35 | 35 | |
| 4.9 | Overall vehicle length (forks excluded/included) | L(mm) | 1652/2573 | 1694/2774 | |
| 4.10 | Overall vehicle width | b1(mm) | 916 | 902 | |
| 4.11 | Forks dimensions | s/e/l(mm) | 920*100*35 | 1070*100*35 | |
| 4.12 | Fork adjustment dimensions (outer width) | b5(mm) | 200-580 | 200-580 | |
| 4.13 | Minimum ground clearance (wheelbase center) | m2(mm) | 40 | 80 | |
| 4.14 | Stacking aisle width， pallet1000×1200 (1200 placed cross forks) | Ast(mm) | 2956 | 2846 | |
| 4.15 | Stacking aisle width， pallet1000×1200 (1200 placed along the forks) | Ast(mm) | 3094 | 3083 | |
| 4.16 | Minimum turning radius | Wa(mm) | 1528 | 1480 | |
| Performance | 5.1 | Travel speed, full loaded/loaded | km/h | 4.0/3.5 | 4.0/3.5 |
| 5.2 | Lifting speed, full loaded/loaded | m/s | 0.215/0.130 | 0.215/0.130 | |
| 5.3 | Lowering speed, full loaded/loaded | m/s | 0.105/0.130 | 0.105/0.130 | |
| 5.8 | Maximum gradeability, full loaded/loaded | ％ | 5.0/4.0 | 5.0/4.0 | |
| 5.1 | Service brake | Electromagnetic | Electromagnetic | ||
| Motor | 6.1 | Drive motor power | kw | 0.75 | 1.5 |
| 6.2 | Lifting motor power | kw | 2.2 | 2.2 | |
| 6.3 | Battery type | Lead acid | Lead acid gel battery | ||
| 6.4 | Battery voltage/capacity | V/Ah | 24/100 | 24/150 | |
| 6.5 | Battery charger | v/A | 24V/10A | 24/20A | |
| Other | 7.1 | Drive control mode | DC | AC | |
| 7.4 | The driver’s ear noise level according to EN12053 | dB(A) | 70 | 70 |
